Mainline Stabilizer

5 KVA 4000W 50V - 280V Heavy Duty Voltage Stabilizer for Mainline

Aulten brings to you an exclusive range of energy-efficient and automatic voltage stabilizers that are an ideal fit for all your appliances and their voltage needs.pliances and their voltage needs.

Compact Design

Working Time : 10 AM–6 PM IST

Genuine Product

Warranty Covered

Dedicated Support

Product Details

Aulten brings to you an exclusive range of energy-efficient and automatic voltage stabilizers that are an ideal fit for all your appliances and their voltage needs. This voltage stabilizer for 5 KVA is designed to take care of all the appliances in your home. After use, you will notice that the fans will start moving faster, lights will be brighter and everything else in between will feel like a new energy in your home! This is recommended to use in adversely affected areas where there are frequent power cuts. It will also help your Inverter/UPS charge the batteries faster so you’re ready quicker, for any unforeseen power outages. With all these multi-benefits like very fewer voltage fluctuations, suitable for pumps and submersibles because it’s based on an intelligent system with a digital voltmeter it helps give accurate power voltage reading. And one of the best things about Aulten stabilizer that they are easy to install.

Why Aulten

Engineered Features

Full Automatic

Energy Efficiency

24 Hrs Non-Stop Working Power

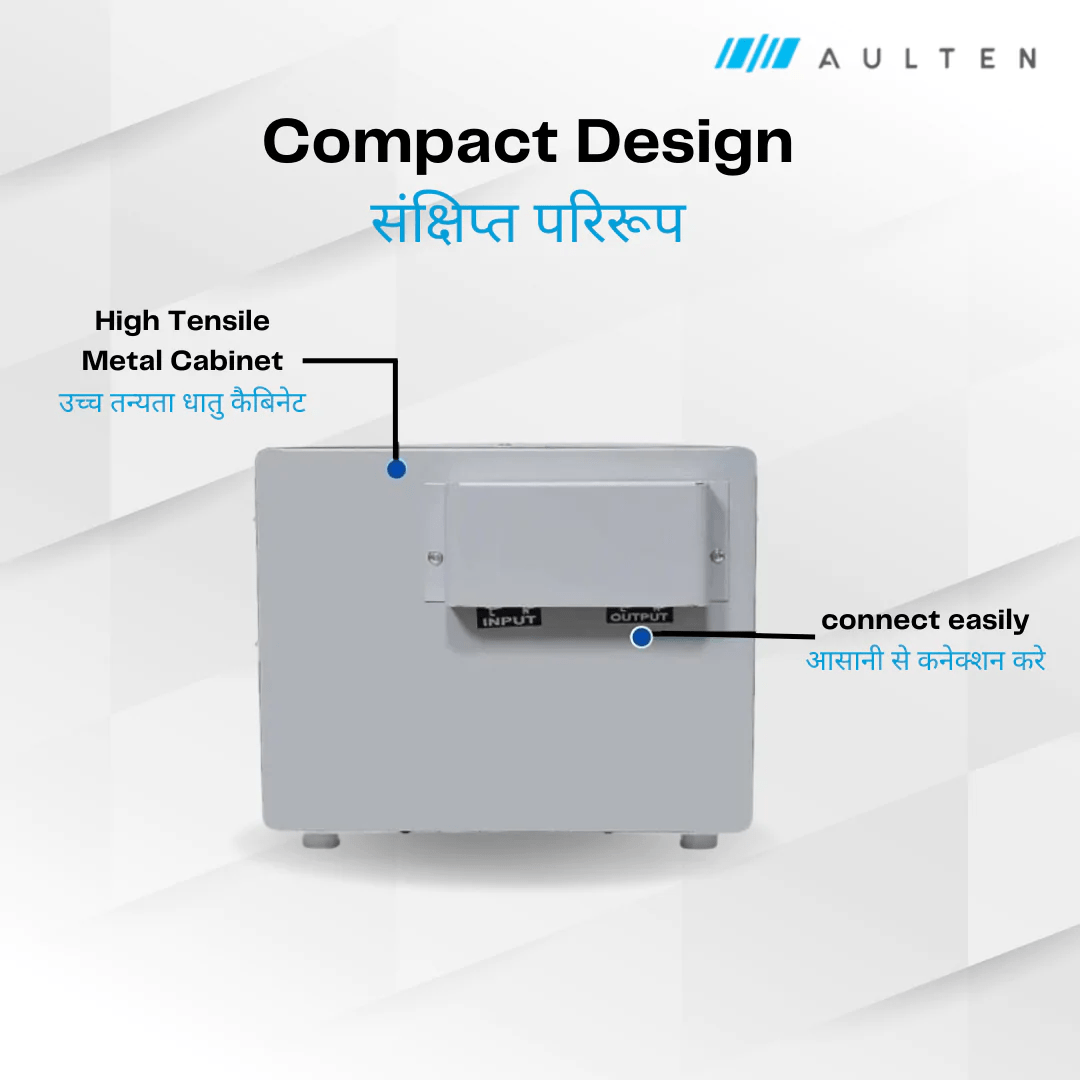

Compact Design

Easy To Install

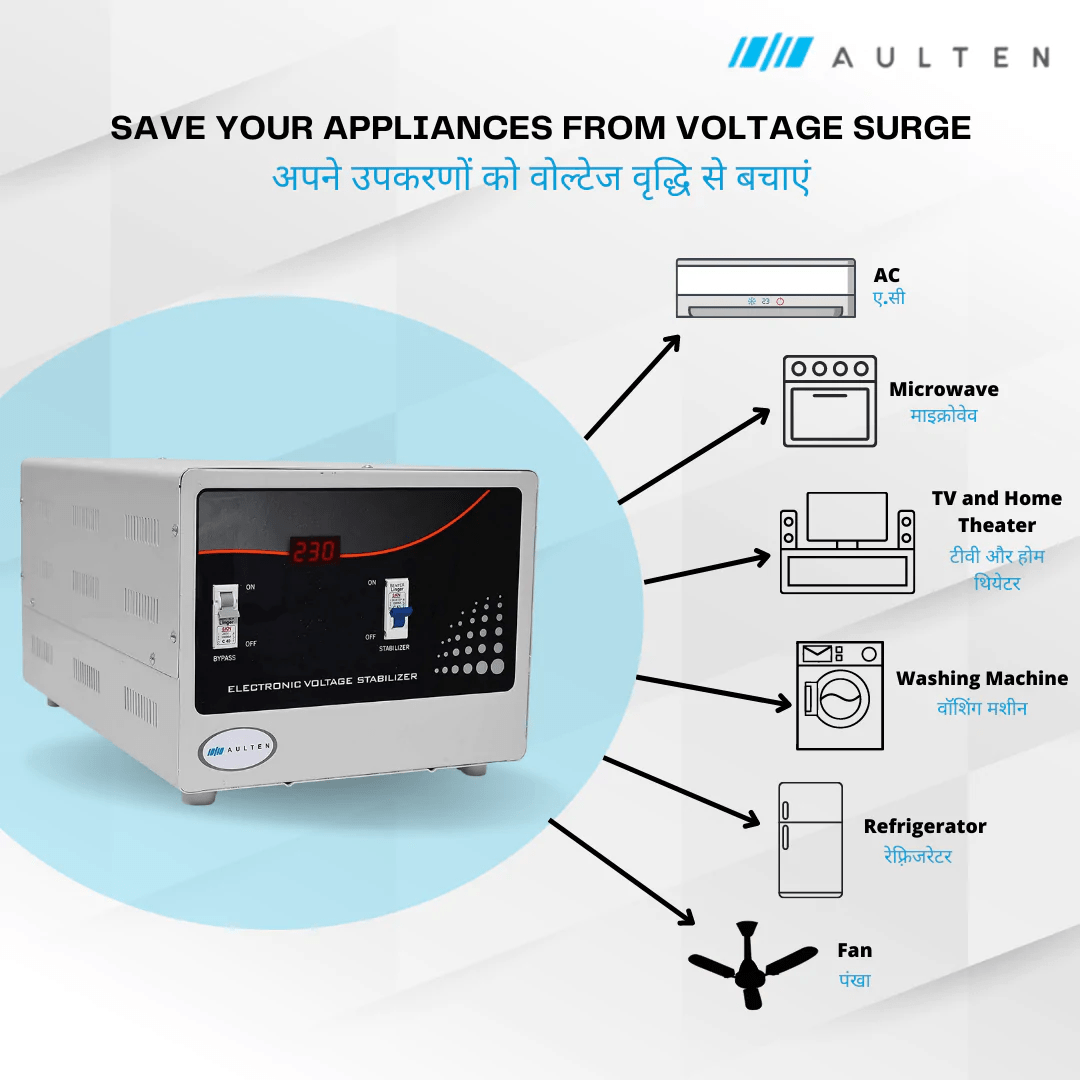

Appliances Protection

Full Datasheet

Technical Specifications

Working Range50V – 280V
Output Voltage Range200V-240V +/- 5% (190V Lowest & 252V Highest)
Low Voltage Cut Off50V
High Voltage Cut Off280V Cut Off (Recovery @ 300V)
Max. Output Current20 Amps.
Initial Time Delay5 to 10 seconds
Frequency50 Hz. +/- 2 Hz.
Overload Protectionvia MCB (Stabilizer On/Off Mains)

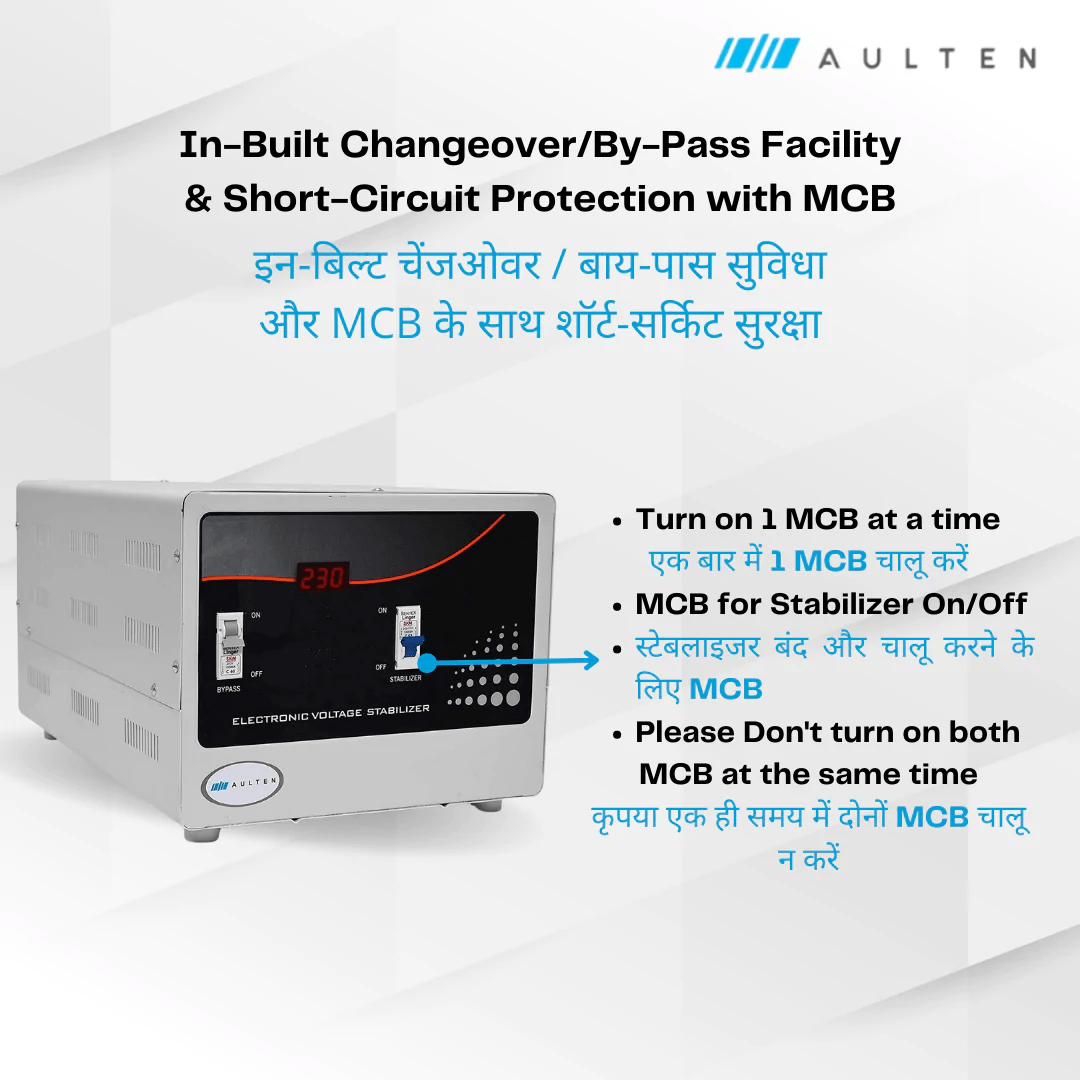

By-Pass / Changeovervia MCB (To be turned on 1 MCB at a time)
OperationFully Automatic
TechnologyRelay Type
Display TypeDigital (Multifunctional)
Display Parameters‘Lo’ for Low voltage, ‘Hi’ for High Voltage
Voltage Display‘IP’ for Input, ‘OP’ for Output
Idle Power ConsumptionLess than 10 watts*
Recommended MCBUse only ‘C’ Series MCB at your Distribution Box before connecting the stabilizer

Have a specific engineering brief or urgent project tender?

Our technical engineering team supports custom voltage thresholds, PCB layout, OEM housing and tender compliance.

For Enquiry and Dealership

You've got questions,
We've got answers

Share your requirement and our team gets back with pricing, dealership terms and technical guidance for the 5 KVA mainline stabilizer.
