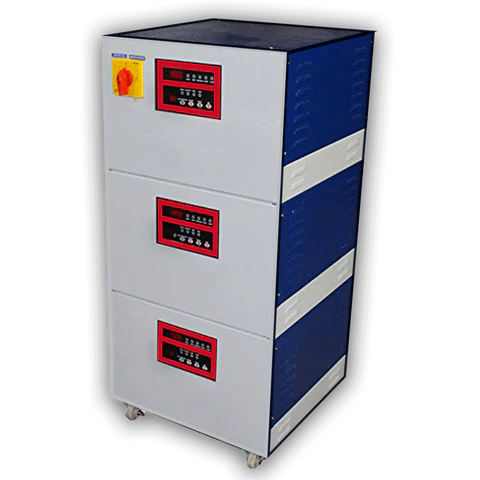

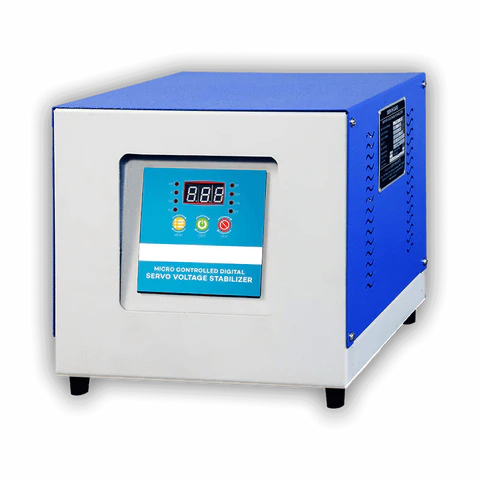

Servo Voltage Correctors

The Servo Stabilizers are ideal choice for used as Mains Voltage Stabilizer, they provide continuous and precise voltage regulation without any break in supply. AULTEN Stabilizers are highly power-efficient, having less than 2% no-load losses.

If your unit is suffering from low/high/unbalanced voltage, you need to install a stabilizer soon. Industrial units having an acute/ higher failure rate of electrical equipment such as bulbs, tubes, chokes, starters, contractor coils, motors, etc., should verify that it may be due to voltage variation (esp. High voltage). You may note down hourly readings of incoming voltage for a few days continuously. If you find that the input voltage is lower or higher than 230V (single phase)/ 400V (three phase) even for few hours a day, then you definitely require a stabilizer.

Servo Voltage Corrector Technical Specifications

Specification

2KVA to 30KVA (Single Phase)

5 KVA to 1000 KVA (Three Phase)

Working Range90V – 300V90V – 300V
Output Voltage Range200V-240V +/- 5% (190V Lowest & 252V Highest)200V-240V +/- 5% (190V Lowest & 252V Highest)
Low Voltage Cut Off90V90V
High Voltage Cut Off280V Cut Off (Recovery @ 300V)280V Cut Off (Recovery @ 300V)
Max. Output Current20 Amps.20 Amps.
Initial Time Delay5 to 10 seconds5 to 10 seconds
Frequency50 Hz. +/- 2 Hz.50 Hz. +/- 2 Hz.
Overload Protectionvia MCB (Stabilizer On/Off Mains)via MCB (Stabilizer On/Off Mains)
By-Pass / Changeovervia MCB (To be turned on 1 MCB at a time)via MCB (To be turned on 1 MCB at a time)
OperationFully AutomaticFully Automatic
TechnologyRelay TypeRelay Type
Display TypeDigital (Multifunctional)Digital (Multifunctional)
Display Parameters‘Lo’ for Low voltage, ‘Hi’ for High Voltage‘Lo’ for Low voltage, ‘Hi’ for High Voltage
Voltage Display‘IP’ for Input, ‘OP’ for Output‘IP’ for Input, ‘OP’ for Output
Idle Power ConsumptionLess than 10 watts*Less than 10 watts*
Recommended MCBUse only ‘C’ Series MCB at your Distribution Box before connecting the stabilizerUse only ‘C’ Series MCB at your Distribution Box before connecting the stabilizer

Duty Cycle

24 hr. Continuous Operation

Wave Form DistortionNil True to Input
Response TimeLess Than 10ms
Correction SpeedUp to 70V per sec. (Dependent on Input Voltage & Capacity)
Correction MethodStep-less Correction using Auto Variable Transformer
SuitabilitySuitable for all Power Factor Loads
Break Down Strength & IR300V AC for 2minutes, Greater than 50 Mega Ohms at 500V DC
No Load LossNo Load Loss Less than 0.4%
Type & SuitabilityUnbalanced Supply, 3 Phase Unbalanced
